JG31 series closed single point press machine

Send Email

　　Structure and Characteristics

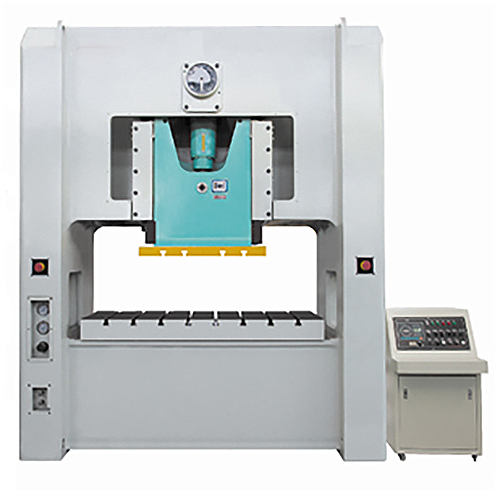

　　The JG31 series closed single point press is a special press developed by our company (formerly Shanghai Second Forging Machine Tool Factory) according to market demand. It has been mass-produced and is suitable for high-speed punching, cutting, bending, shallow stretching, and other medium-sized mold processes for special medium and wide surface materials.

　　Performance characteristics:

　　1. The welded structure of the fuselage steel plate has good rigidity and is subjected to annealing or vibration aging to remove stress, resulting in minimal deformation; The closed structure eliminates the angular deformation phenomenon of open press machines, greatly improving the machining accuracy of stamping parts and the service life of molds.

　　2. The crankshaft is placed longitudinally, with a short pivot distance, compact structure, and reasonable layout; The transmission gear operates immersed in oil, with low noise and minimal wear.

　　3. Shanghai "Dingjie" brand clutch or Italian "OMPI" brand clutch; And provide wet clutches according to the special needs of users.

　　4. Adopting imported pneumatic pump, with good stability and sensitive action response; External fuel tank, easy to maintain.

　　5. Sliding block guide rail eight sided guidance, long guide rail, high precision of machine tool operation.

　　6. The lubrication system adopts imported electric grease pump for automatic fixed-point lubrication, and is equipped with a progressive distributor. The oil supply time and amount are controlled by the PLC system, and the oil circuit blockage is automatically alarmed and indicated.

　　7. Electric adjustment of mold height, easy to use, equipped with digital mold height indicator, display accuracy+0.1mm.

　　8. Configure a pneumatic balance cylinder to balance the weight of the slider and upper mold, ensuring smooth operation of the press.

　　9. The electrical system is controlled by the French "Schneider" brand or the Japanese "Izumi" programmable logic controller (PLC), with emergency stop, inching, single and continuous operation modes; The main electrical components are all from the French brand Schneider, with reliable performance.

　　Main technical parameters of JG31 gantry press

Technical Parameter		單位	JG31-60	JG31-80	JG31-125	JHG31-160
Sliding block nominal pressure		KN	600	800	1250	1600
Ability occurrence location		mm	2.5	3	3.5	4
Slide stroke		mm	80	90	100	120
Stroke times		次/min	60-110	55-100	50-95	40-75
Maximum enclosed height		mm	330	355	390	440
Closed height adjustment amount		mm	70	80	90	110
Distance between columns		mm	1600	1800	1800	1800
Distance from workbench to ground		mm	1000	1000	1000	1000
Workbench size	about	mm	1400	1600	1600	1750
	around	mm	520	600	680	900
	thickness	mm	130	140	155	165
Bottom size of slider	about	mm	480	540	620	1000
Bottom size of slider	around	mm	400	460	520	700
Body side port size	up and down	mm	350	400	400	450
	around	mm	400	460	520	700
Mold handle hole size	diameter	mm	50	50	70	70
Mold handle hole size	depth	mm	70	70	80	100
External dimensions	about	mm	2160	2360	2460	2580
	around	mm	1685	1990	2125	2650
	tall	mm	2560	2725	3055	3895
Motor power (fixed/variable)		KW	5.4	7.5	7.5	15
weight		kg	8000	12000	18000	23000

　　Standard configuration:

　　Dry clutch, hydraulic overload protection device, electric grease lubrication device, manual thin oil lubrication device, slider and upper mold balance device, electronic crankshaft angle indicator

　　Electronic cam controller, electric slider adjustment device, programmable controller, upper slider discharge device, air source quick connector, dual solenoid valve, movable dual hand operation platform

　　Shock pad, air blown material, frequency converter, movable electrical control box.

　　Selection configuration: (User selection should be specified in the contract)

　　Wet clutch brake, pneumatic mold pad device, photoelectric safety device, quick mold changing device, foot switch, automatic feeding output shaft, preset counter
